SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated

Product Categories
Shenzhen First Technology Co., Ltd.
Contact Now

SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated

  • 1
  • 2
  • 3

Brand Name : TWITTER

Model Number : CYCLONEpro,R7000-22S, carbon wheel

Certification : ISO9004 CE REACH ROHS

Place of Origin : CHINA

MOQ : 50PCS

Payment Terms : L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram,AliPay

Supply Ability : 30000pcs

Delivery Time : 7-15Days

Packaging Details : Carton Size:140CM*75CM*20CM and Container Quantity:20GP-120pcs-125pcs;40HQ-290pcs-296pcs

Price : Negotiable

Wheel Size : 700C

Frame Height : 45cm / 48cm / 51cm / 54cm

Bike Color : Black / TiGray / CementGray / Silver / OEM

Net Weight : 8.5KG

Frame : CYCLONEpro(disc&thru-axle)

Fork : Disc&thru-axle 12×100mm

Shift : SHIMANO 105/R7000-22S

Front Derailleur : SHIMANO 105/R7000

Rear Derailleur : SHIMANO 105/R7000

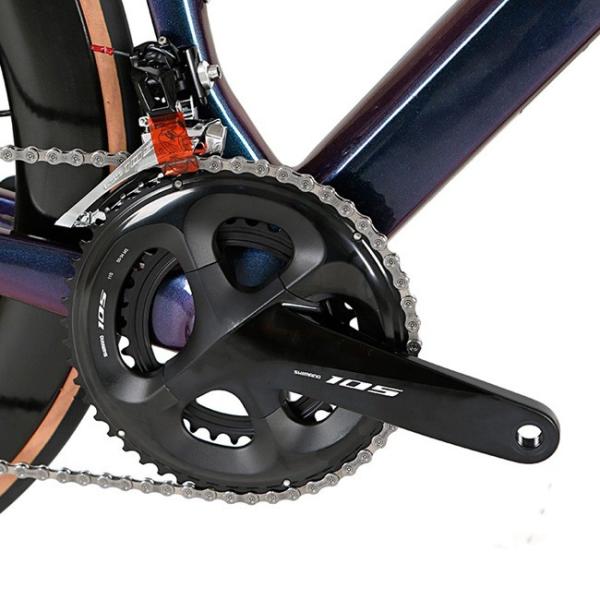

Cranksets : SHIMANO 105/R7000, 34-50T

Cassettes : SHIMANO 105/R7000-11S,11-28T

Brake : ZOOM, flat-mount&cable pull Hyd+PRO float disc 140

Contact Now

Carbon Fiber Road Bike TWITTER CYCLONEpro Carbon Integrated Handlebar SHIMANO 105/R7000 Carbon Wheel

CUSTOMIZED SERVICES

(1) Customized logo can be accepted.

(2) Color combination is available

AFTER-SALES SERVICES

(1) Frame and fork: 1 year's warranty

(2) Mechanical parts: 1/2 year's warranty

Component:

Frame CYCLONEpro(Disc&thru-axle 12×142mm), high modulus Carbon,EPS,Racing,full Inner-Cables,Gloss or Matte,UV embossing decals
Handelbar Sets TW, high modulus Carbon, Integrated Handlebar&Stem(420*90mm),UV embossing water decals, full Inner-Cables
Seat Post High modulus Carbon, UV decals
Clamps Hidden Screw Fit to Frame
Fork CYCLONEpro, high modulus Carbon,700C,UV embossing decals, Disc&thru-axle 12×100mm
Head Sets TW, Alu alloy CNC with sealed-Bearings 52*52mm
Washer Carbon 3K, 3×28.6×10mm
Derailleur Handle SHIMANO 105/R7000-22S
Front Derailleur SHIMANO 105/R7000
Rear Derailleur SHIMANO 105/R7000
Cranksets SHIMANO 105/R7000, 34-50T
Cassettes SHIMANO 105/R7000-11S,11-28T
Chain SHIMANO HG601-11S
BB BB86×46×24mm, pressed, Alu alloy CNC&Hollow, with sealed bearings
Brake RS, flat-mount&cable pull Hydr(metal radiator)+PRO float disc 140
Hubs TW Alu alloy in Carbon, 4-sealed Bearings,Slotted,F20-R24 holes,Disc&thru-axle F12×100_R12×142mm
Rim RS ultra-light carbon 3K twill,Clincher,W25×H50mm×700C, UV decals
Spoke Pillar, Stainless Pro, Flat 14G,straight
Tyre INNOVA-PRO, Smoothie, 60TPI, 700*25C, Skin-color edge

CYCLONEpro Details: R7000-22S, carbon wheel

SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike IntegratedSHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike IntegratedSHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike IntegratedSHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike IntegratedSHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated

Size:700C*45cm / 48cm / 51cm / 54cm

SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated

The Geometry of CYCLONEpro
size A B C D E F G H I J K
BB Center to Top of Seat Tube Effective Top Tube Horizontal BB offset Chainstay Length Seat angle Head Angle Front Center Head Tube Length Fork Offset Reach Stack
mm mm mm mm ° ° mm mm mm mm mm
XS - 45cm 450 505 -74 408 74.3 71.2 570 100 55 363 506
S - 48cm 480 520 -74 408 74.3 71.2 588 114 55 374 518
M - 51cm 510 538 -74 408 74.3 71.2 607 130 55 388 534
L - 54cm 540 550 -74 408 74.3 71.2 620 150 55 394 553
FRAME SIZE WITH RIDER HEIGHT
Frame size XS - 45cm S - 48cm M - 51cm L-54cm
Rider height 155-170cm 165-175cm 175-185CM 185-195CM

Angles:

SHIMANO 105/R7000 Carbon Fiber Road Bike , 8.5 KG Road Bike Integrated

CUSTOM BIKE LOGO SERVICE

> Available custom logo color : white or black - Premium engineering reflective film - better safety visibility

> Logo size : maximum 13 inch x 1.75 inch

Custom logo design procedure

> Purchase TWITTER carbon road bike
> Send us your logo file or logo name
> Finalize logo design within 5days.
> Confirm the sample within 7 days.
